Dimple Plate Heat Exchanger

China Custom Stainless Steel Dimple Plate Heat Exchanger Manufacturer

What is the Dimple Plate Heat Exchanger?

A dimple plate heat exchanger is a type of heat exchange equipment typically assembled from multiple dimple plates. In some contexts, a single dimple plate is also referred to as an individual heat exchanger unit. Our dimple plates are not fabricated by welding two die-stamped plates together. Instead, they are manufactured by laser welding two stainless steel sheets followed by internal pressurized bulging forming.

Dimple Plate Type

Double Embossed Plates are most commonly used for heat transfer heat exchangers.

Single Embossed Plates are used for cooling or heating jackets, tanks, trays.

Dimple Plate Heat Exchanger Raw Material:

Stainless Steel Grade: 430,304,316L,310S,2205,2507,904L.....

Ti Material:T1

Dimple Plate Heat Exchanger Specification

All our dimple plate heat exchangers are customized.

For any shape or width/length, please feel free to contact our Sales.

Our normal plate thicknesses are as below,

Double Embossed Plate Thickness 0.8+0.8mm,1.0+1.0mm,1.2+1.2mm,1.5+1.5mm,2.0+2.0mm,2.5+2.5mm

Single Embossed Plate Thickness

0.8+3-10mm,1.0+3-10mm,1.2+3-10mm,1.5+3-10mm,2.0+3-10mm

Dimple Plate Heat Exchanger Cooling and Heating Medium

For heating, it could be steam, hot water, or thermal oil, and so on;

For cooling, it could be chilled water, brine, or a refrigerant, and so on.

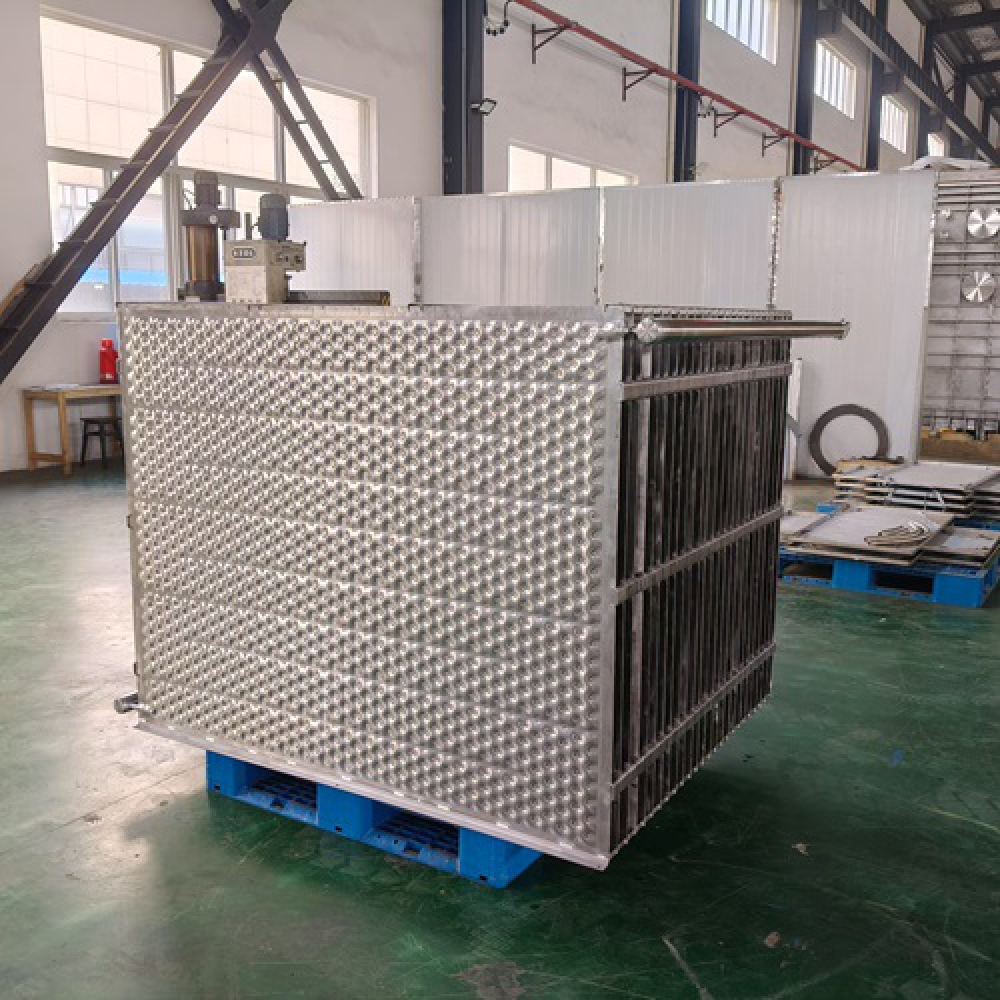

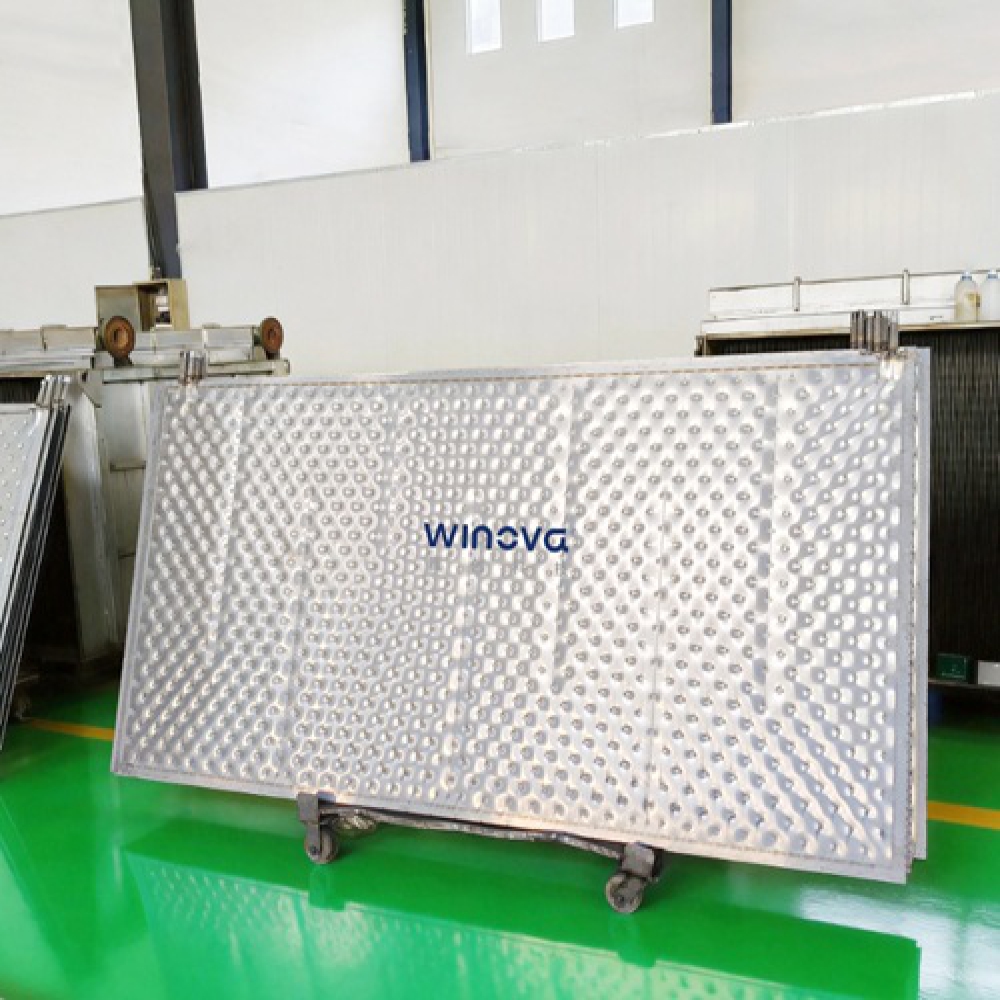

Different Dimple Plates we made:

Dimple Plate Heat Exchanger Advantages

1. Compared with a shell-and-tube heat exchanger, our laser welded pillow plates

have a unique pillow structure that offers a large heat transfer area,

ensuring high-efficiency heat exchange.

2. Compared with a normal plate heat exchanger, our laser welded pillow plates can adapt to high-temperature and high-pressure media conditions.

3. A smooth inner wall prevents residue and scale buildup. It supports circulation flushing, inline CIP, and chemical cleaning to cut maintenance frequency and O&M costs.

4. Fully customizable sizes for plates and exchangers to fit your space, arrangeable in any shape.

5. It can handle viscous fluid, wastewater, and particle-laden media, avoiding the typical clogging issues of standard plate heat exchangers.

Dimple Plates Production Process

Good Comments from Customers
